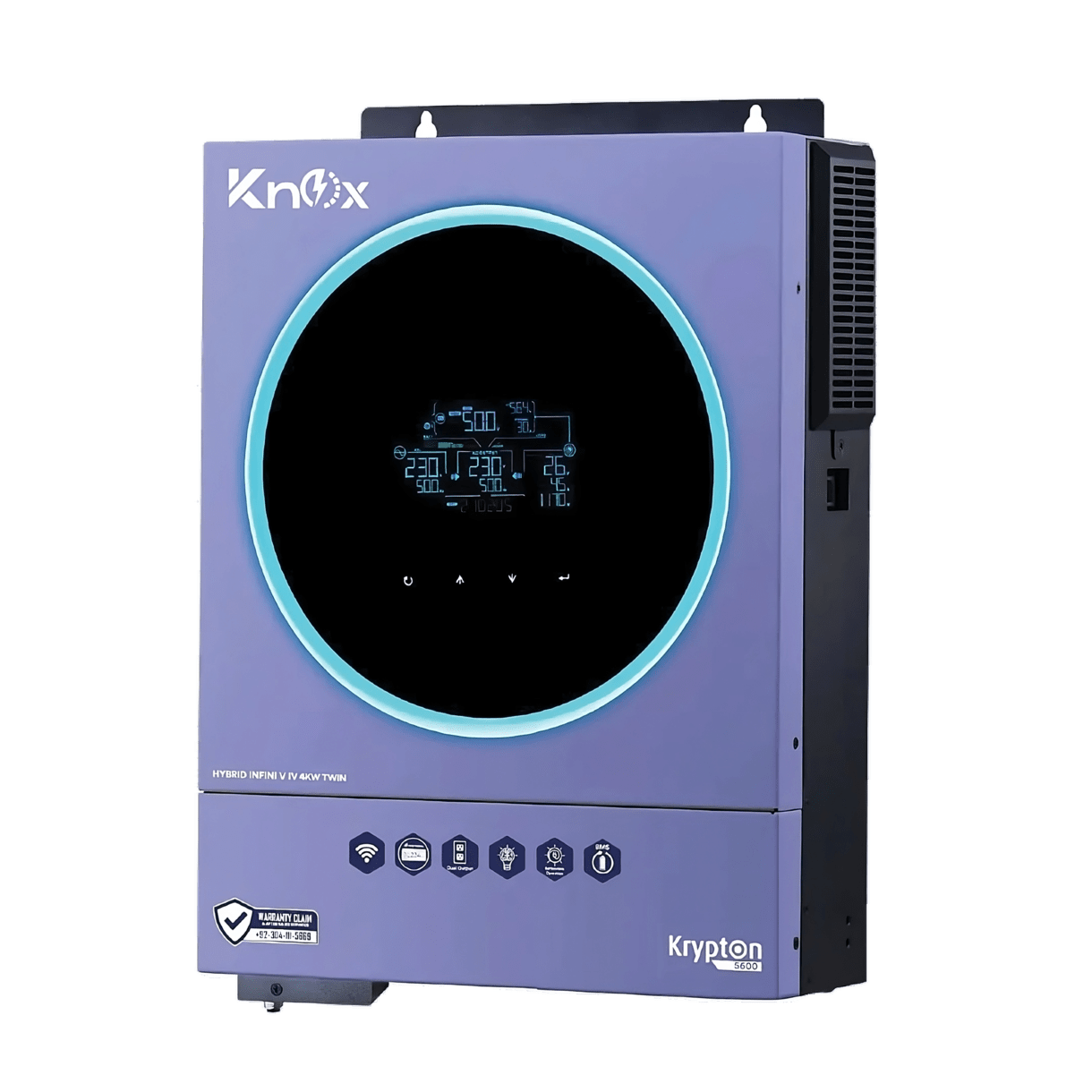

Knox Krypton 5600 Infini V4 4kW Twin Hybrid Solar Inverter

Knox Series

Krypton 5600

Model

HYBRID INFINI V 4KW TWIN

Phase

Single Phase

Maximum PV Input Power (W)

5600 W

Rated Output Power (W)

4000 W

GRID-TIE OPERATION

PV INPUT (DC)

Nominal DC Voltage / Maximum DC Voltage

500 VDC

Start-up Voltage/ Initial Feeding Voltage

120VDC /150 VDC

MPP Voltage Range

60 — 450 VDC

Number of MPP Trackers / Maximum Input Current

1/ 27A (MAX 40A)

GRID OUTPUT (AC)

Nominal Output Voltage

220/230/240 VAC

Output Voltage Range

170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances

Nominal Output Current

18 A

Power Factor

> 0.99

EFFICIENCY

Maximum Conversion Efficiency (DC/AC)

95%

OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage / Auto Restart Voltage

120 -140 VAC /180 VAC

Acceptable Input Voltage Range

90 - 280 VAC or 170 - 280 VAC

Frequency Range

50 Hz/60 Hz (Auto sensing)

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

220/230/240 VAC

Output Waveform

Pure sine wave

Efficiency (DC to AC)

93%

DC Voltage

12 VDC * 5%, 100W

Transfer Time

10 ms (For Personal Computers) ; 20 ms (For Home Appliances)

BATTERY & CHARGER

Nominal DC Voltage

24 VDC

Floating Charge Voltage

27 VDC

Overcharge Protection

33 VDC

Solar Charger type

MPPT

Maximum AC Charging Current

120 A

Maximum Charging Current

120A

Surge Power

8000VA

GENERAL

PHYSICAL

Dimension, D x W x H (mm)

119 x 313.6 x 457.5

Net Weight (kgs)

12

INTERFACE

Parallel Function

Yes, 9 units

Communication Port

USB/RS232/RS485/Wi/Dry-contact

OPERATING ENVIRONMENT

Humidity

0 ~ 90% RH (No condensing)

Operating Temperature

-10°C to 50°C

Storage Temperature

-15°C to 60°C

What is the maximum power output of the Knox Krypton 5600 Infini V4 4kW Twin Hybrid Solar Inverter?

The maximum power output is 4000 W.

Can I install this inverter outdoors?

Yes, the Knox Krypton 5600 Infini V4 4kW Twin Hybrid Solar Inverter is designed for outdoor installation and can operate in a wide temperature range (-10°C to 50°C).

What is the efficiency of this inverter?

The efficiency is >95%.

Can I monitor the performance of this inverter remotely?

Yes, the Knox Krypton 5600 Infini V4 4kW Twin Hybrid Solar Inverter has 4 inch RGB monitoring screen and you can also communicate and monitor through Knox mobile app Solplanet.

Can I integrate any type of battery with the Knox Krypton 5600?

Yes, you can integrate any type of battery with the Knox Krypton 5600.

Does the Knox Krypton 5600 have a touch LCD display?

Yes, the Knox Krypton 5600 has a large 4-inch touch LCD display that provides status updates on battery health, PV power, and WAPDA connection.

What type of solar panels is the Knox Krypton 5600 compatible with?

The Knox Krypton 5600 is compatible with all types of solar panels from various brands, including N-type, P-type, and bifacial panels.

What is the price of the Knox Krypton 5600 Infini V4 4kW Twin Hybrid Solar Inverter in Pakistan?

The price of the Knox Krypton 5600 Infini V4 4kW Twin Hybrid Solar Inverter in Pakistan is between PKR 150,000 and PKR 170,000.
